Payx iQ 8
Kasse für Linx iQ

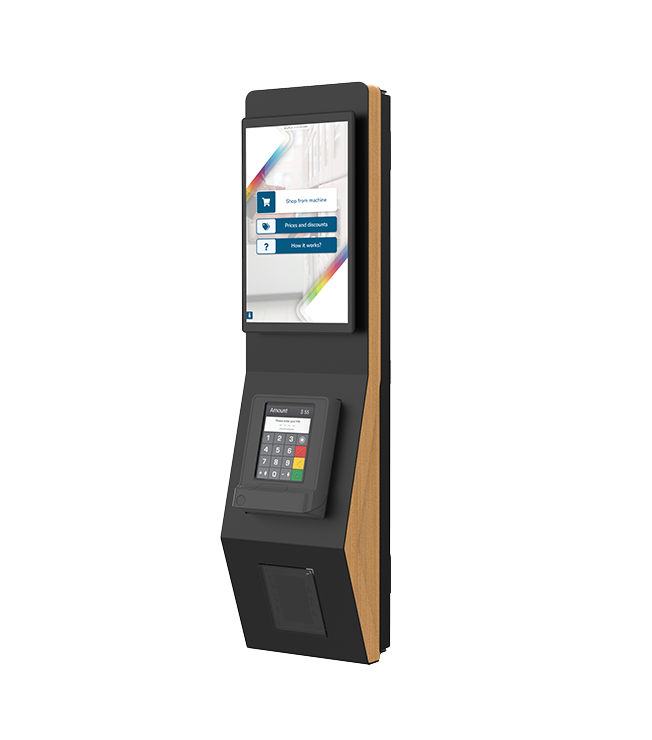

Steuereinheit für Linx iQ & Racx iQ
Diese elegant gestaltete Steuereinheit kann seitlich an Linx iQ oder Racx iQ angeschlossen werden und ist auch in einer wandmontierten Version erhältlich
Merkmale
Merkmale
All Your Data Needs in a
Single AI-Powered Workspace
A
B
DATA VISUALIZATION
Describe the product here. Include important features, pricing and other relevant info. Consider adding an image or video of the product.
C
CUSTOM AI SOLUTIONS
Describe the product here. Include important features, pricing and other relevant info. Consider adding an image or video of the product.
D
SUPPORTING MASSIVE DATA SETS
Describe the product here. Include important features, pricing and other relevant info. Consider adding an image or video of the product.
E
CHAT WITH YOUR DATA
Describe the product here. Include important features, pricing and other relevant info. Consider adding an image or video of the product.
Touchscreen display
Diagonal size
8 inch
Panel type
IPS LED
Resolution
800x1280 px
Active area
172,8x108,3 mm
Panel Brightness
350 cd/m²
Contrast ratio
10000:1
Viewing angle
178°
Color support
16.7 M
Touch panel type
PCAP with 10 touch points
Integrated systems
Micro PC
Single Board PC - 4GB - 64-bit quad-core Cortex A-72 (ARM v8)
Network LAN
5-port LAN switch (not included with router option)
Network 4G
Teltonika 4G router (optional)
USB
7-ports USB 3.2 -hub
Environment
Operating temperature
0 ~ 40 °C
Operating humidity
20 ~ 80 %RH
Storage temperature
-20 ~ 60 °C
Storage humidity
10 ~ 90 %RH
General
Power supply
12VDC (5v converter internal)
Power usage display
10W
Power usage total
44W
Supplied AC adapter
230V to 12V (70W) 5.5/2.1 jack plug
Product dimensions
140x520x198 mm (HxWxD)
Dimensions wall mount
164x630 mm (HxW)
Product weight
4.5 kg
Colour
Black (RAL 9005)*Specific color on request
Mounting on machine
LockBlox iQ Breeze, Flex, Racx iQ, Linx iQ Breeze, LockBlox Smart
Wall mounting
Integrated wall mounting available - a cut-out in the wall is necessary
